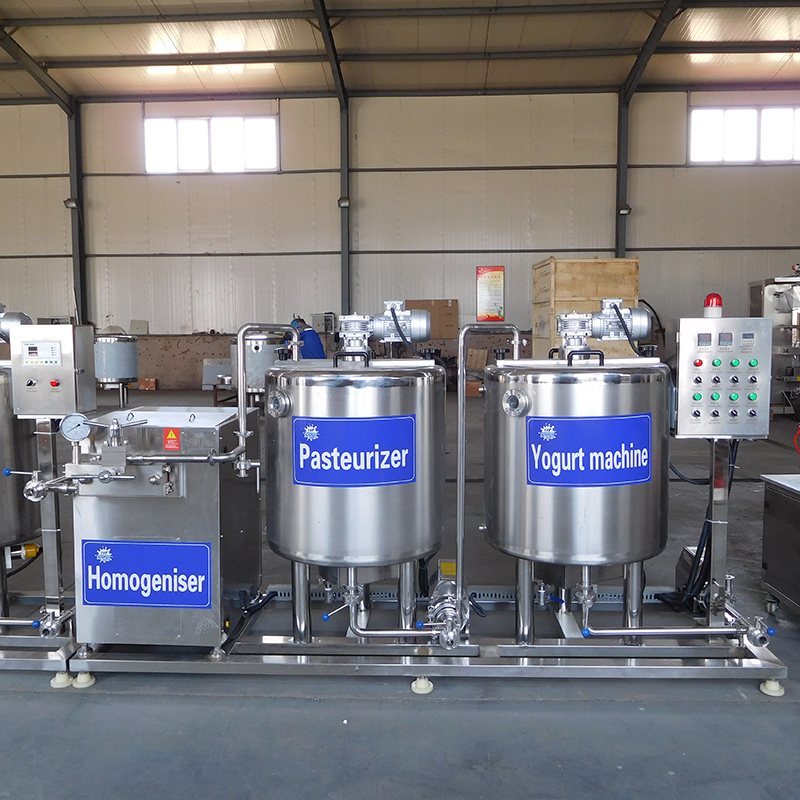

Small scale milk & yogurt processing line for promotion

Production line introduction:After centrifugation, standardization, homogenization, sterilization and cooling, the milk can be directly filled after pasteurization and homogenization without any additives. Due to low temperature sterilization, the beneficial bacteria in milk can be retained, and the nutritional value is particularly high. Moreover, the cost of the equipment is low and the package is simple.

Pasteurized milk is a kind of "low temperature pasteurized milk". The harmful microorganisms in raw milk have been generally killed, but some other microorganisms will be retained. Therefore, this kind of milk is required to be refrigerated at about 4 ℃ in transportation, sales, storage and other links, so as to prevent the microorganisms in it from "active". glass bottles, etc

inquiry

Description



This production line is used for the production of pasteurized milk & yoghurt fermented milk. The production line of different specifications can be customized

according to customer requirements and output.

The entire production line includes milk collection, blending system, homogenization sterilization system, fermentation system, cooling system, filling system, CIP system.


Process: milk collection → milk purification → sterilization → homogenization → (fermentation) → cooling → filling → refrigeration


100L

150L

200L

300L

500L

100L refrigeration tank

150L refrigeration tank

200L refrigeration tank

300L refrigeration tank

1000L refrigeration tank

100L preheat tank

150L preheating tank

single filter

300L preheating tank

500L preheating tank

single filter

single line filter

200L preheating tank

single filter

double filter

200L Homogenizer

200L Homogenizer

200L Homogenizer

500L Homogenizer

500L Homogenizer

100L sterilization tank

150L sterilization tank

200L sterilization tank

300L sterilization tank

500L sterilization tank

100L Fermentation Tank

150L Fermentation Tank

200L Fermentation Tank

300L Fermentation Tank

500L Fermentation Tank

Packing Machine

Packing Machine

Packing Machine

Packing Machine

Packing Machine

Breast pump*4

Breast pump*4

Breast pump*4

Breast pump*4

Breast pump*4

Pipes, valves, bases

Pipes, Valves, Quick Connect

Pipes, Valves, Quick Connect

Pipes, Valves, Quick Connect

Pipes, Valves, Quick Connect

(optional)

(optional)

300L CIP cleaning

300L CIP cleaning

500L CIP cleaning

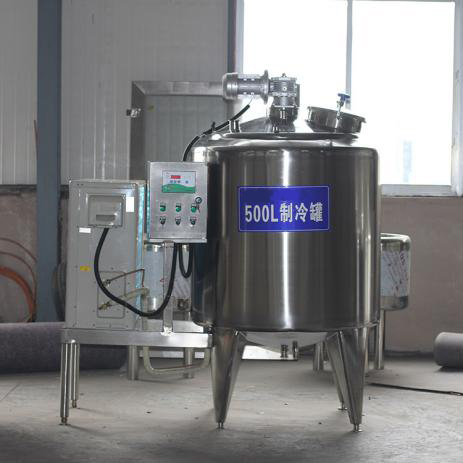

Cooling Tank

Material: SUS304 Power supply: 380v/50Hz Total power: 2Kw Cooling capacity: 5000 kcal/hour Installation size: 1700*1100*1950mm Refrigeration medium: R22 Thermal insulation performance: ≤1℃/3H Compressor:2P Motor power/quantity: 0.75kw/1

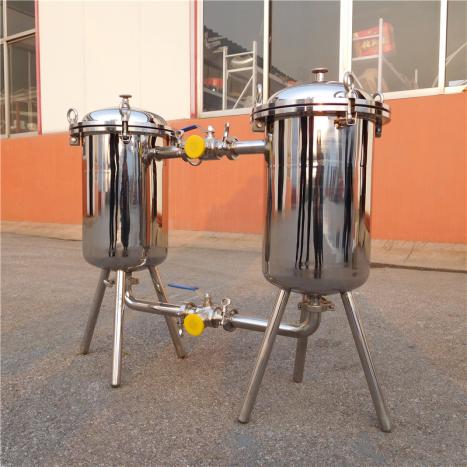

Duplex filter

Filtering capacity: 5t/h Applicable temperature: ≤120℃ Filter aperture: 200 mesh Working pressure: ≤0.2MPa Filter material: 304 stainless steel Filtration accuracy: 200 (mesh/in)

Preheating tank

Material: SUS304 Power supply: 380v 50Hz Power: 9kw Installation size: 1020*870*1530mm Power of stirring motor: 0.55kw Stirring speed: 36r/min Working pressure: 0.09 Mpa Maximum temperature: the boiling point of the liquid at the local pressure

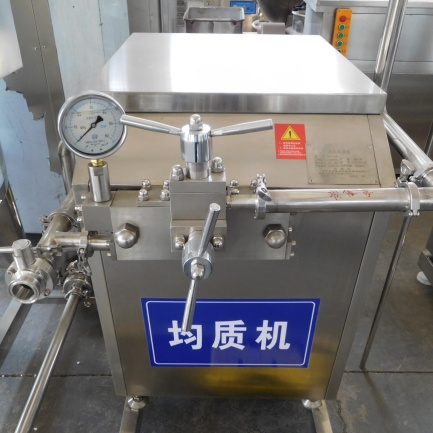

Homogenizer

Output: 200L/H Maximum pressure: 25Mpa Motor power: 4kw Dimensions: 990*600*850mm Whole machine weight: 600kg Pump body material: 1Cr18Ni9Ti Plunger material: 9Cr18 Plunger diameter and frequency: 20mm, about 210 times/min Plunger sealing material: V-shaped cloth clip ring Check valve structure: cone valve

Pasteurizer

Filtering capacity: 5t/h Applicable temperature: ≤120℃ Filter aperture: 200 mesh Working pressure: ≤0.2MPa Filter material: 304 stainless steel Filtration accuracy: 200 (mesh/in)

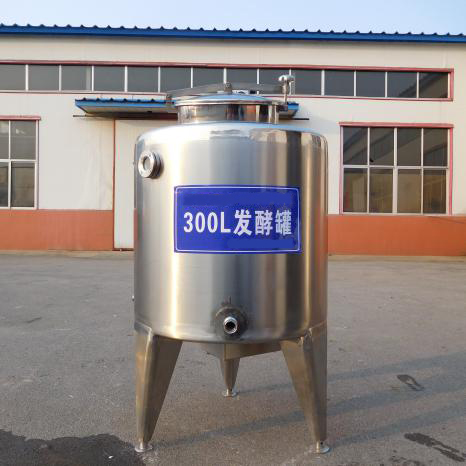

Fermenter

Material: SUS304 Power supply: 380v 50Hz Power: 9kw Installation size: 1400*1400*1950mm Stirring motor: 0.55kw Stirring speed: 36r/min Working pressure: 0.09 Mpa Maximum temperature: the boiling point of the liquid at the local pressure

Filling Machine

Material: SUS304 Working method: continuous work Filling method: automatic filling Equipment size: 1300*1300*1750mm

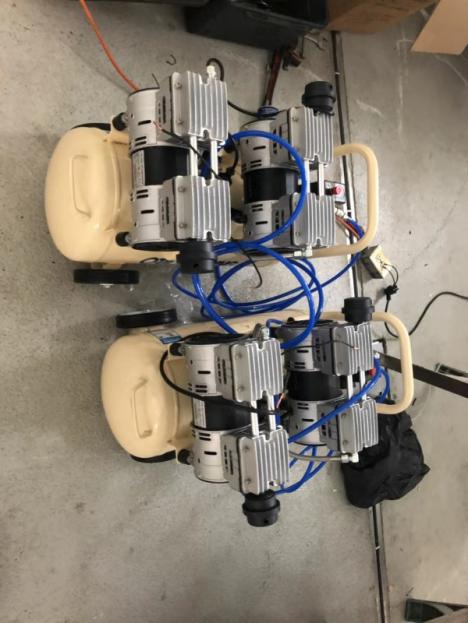

Air Compressor

Power: 7.5kw Wooden box size:1240*500*1060mm

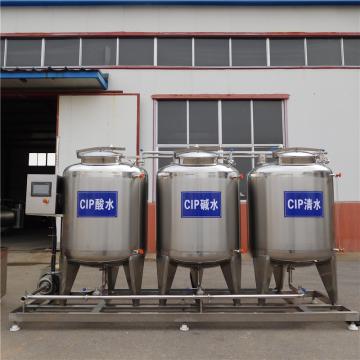

Acid/Alkali/Water Tank

Water tank capacity: 500L Alkali tank capacity: 500L Acid tank capacity: 500L Pump power: 1.5kw Equipment weight: 500kg Dimensions: 4000*900*2300mm
