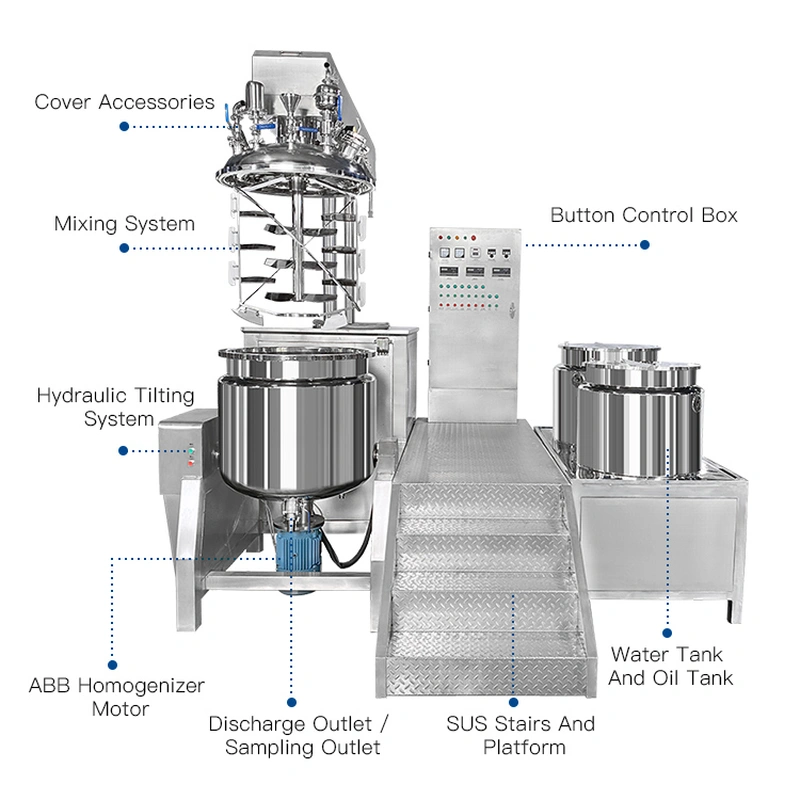

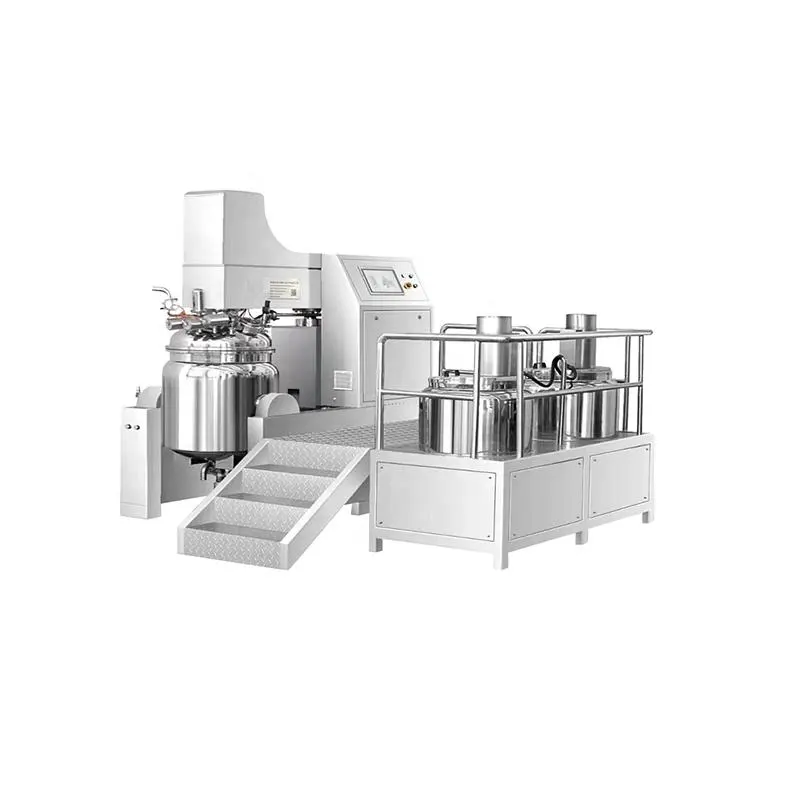

vacuum emulsifier homogenizer mixing equipment
vacuum emulsifier homogenizer mixing equipment
  • vacuum emulsifier homogenizer mixing equipment
  • vacuum emulsifier homogenizer mixing equipment

vacuum emulsifier

Description





The product is mainly applied in such industries as daily chemical care products, biopharmaceutical industry, food industry, paint and ink, nanometer materials, petrochemical industry, printing and dyeing auxiliaries, pulp & paper, pesticide, fertilier, plastic & rubber, electrics and electronics, fine chemical industry, etc. The emulsifying effect is more prominent for materials of high base viscosity and high solid content.

Features:
1.Complex scraping board blending oar is suitable to every kind of complicated recipe and achieve optimizing effect;
2. Polytetrafluroethylene scraping board cater to body of blending groove and scrape out viscosity material on boiler wall;
3.Homogenizer is installed on boiler bottom to increase motor power more thoroughly and strongly. During fewproduction, it can exert homogenizing effect fully;
4.Mightiness balance isotactic curve rotor is matched with stator with corresponding structure to realize liquid high -capability cut,rubbing,centrifugal to make sure exquisite and slick cream; boiler body and pipe surface mirror polishing 300EMSH (sanitation grade) accords with Daily Chemical and GMP regulation.
5.Homogenizing vacuum emulsifier mixer can choose frequency conversion timing homogenizer and highest rotate speed is 4500 r/min


No
Item
Data
1
Voltage
AC380V/3PH (customized)
2
Capacity
300L (100L -5000L can be customized)
3
Mixing system
Frame scraper mixer and high shear homogenizer emulsifier mixer
4
heating system
Electric heating ( steam heating is optional)
5
control system
Button control panel ( PLC touch screen is optional)
6
Motor
Siemens or ABB
7
Converter
Delta or Mitsubishi
8
Working pot structure
3 layers stainless steel , double jacker
9
Function
Vacuum mixer, vacuum defoaming, vacuum mixing , vacuum emulsifying, heating,



Technical parameter




Model

Effective

Emulsifying Motor

Agitator

Vacuum pump

electirc Heating power/kw

Steam heating pressure /Mpa


Capcity/L








KW

RPM

KW

RPM

KW

Limit Vacuum



GYE-5L

5

0.55

0-3600

0.4

0-65

0.37

-0.1

6

0.2

GYE-10L

10

1.1

0-3600

0.55

0-65

0.37

-0.1

6

0.2

GYE-20L

20

1.5

0-3600

0.55

0-65

0.37

-0.1

9

0.2

GYE-50L

50

3

0-3600

0.75

0-65

0.75

-0.1

12

0.2

GYE-100L

100

4

0-3600

1.5

0-65

1.5

-0.1

24

0.2

GYE-200L

200

5.5

0-3600

1.5

0-65

2.2

-0.1

28

0.2

GYE-300L

300

7.5

0-3600

3

0-65

2.2

-0.1

32

0.2

GYE-500L

500

11

0-3600

4

0-65

4

-0.1

50

0.2

GYE-1000L

1000

15

0-3600

5.5

0-65

4

-0.1

54

0.2

GYE-2000L

2000

18.5

0-3600

7.5

0-65

5.5

-0.1

recommend steam hetaing

0.2

GYE-5000L

5000

22.5

0-3600

15

0-65

7.5

-0.1


0.2

The parameters for reference ONLY, all the machines can be customized accordingly.
