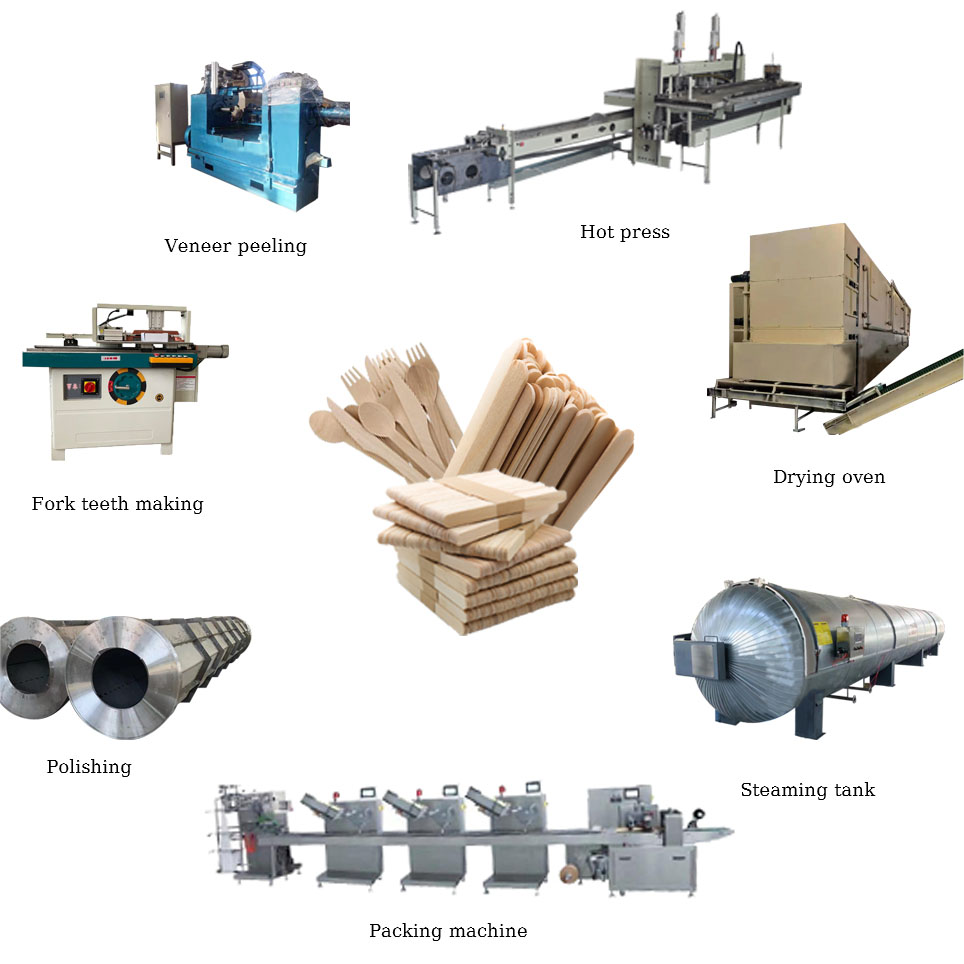

Full automatic high speed Ice cream wooden stick making machine

With the development of society, the European Union has promulgated the environment protection law and plastic limit regulation.

So wood products industry rise very fast, ranging from ice-cream stick, coffee stick, disposable knife, fork and spoon, to food plate, daily necessities, handicraft and so on.

At present, most of the wood products are manufactured manually and semi automatically. Since the labor cost increase a lot and low production efficiency, there is a market demand for automatic production equipment of wood products.

Description


With the development of society, the European Union has promulgated the environment protection law and plastic limit regulation. So wood products industry rise very fast, ranging from ice-cream stick, coffee stick, disposable knife, fork and spoon, to food plate, daily necessities, handicraft and so on. At present, most of the wood products are manufactured manually and semi automatically. Since the labor cost increase a lot and low production efficiency, there is a market demand for automatic production equipment of wood products.
Product Description
Specification
Parameters of production line equipment:
Basic Equipment
Power
(KW)
Weight
(KG)
Machine size
(M)
Capacity
Wood saw cutting machine
18KW/h
1300kg
3*2*2.3
18-22s/ cutting
CNC Barking machine
27.5kw/h
3700Kg
2.3*1.8*1.5
2-4 logs/min
Wood loading machine
0.1Kw/h
230Kg
1.6*1.0*1.6
Feeding speed:3s
Rotary cutting machine
25Kw/h
3200kg
3.7*1.7*1.5
0-220rpm
Carve Cutting machine
4.5Kw/h
680Kg
1.1*1.5*1.1
360 times per minute
CNC drying oven
31.5Kw/h
10500Kg
15*2*4
3CBM/hour
Polishing line


10*1.6
100,000pcs/hour
Arranging Machine
1.5Kw/h
700kg
2.5*1.6*1.75
200,000-300,000 pcs/h
Ice cream stick/Tongue depressor production line
Power
(KW)
Weight
(KG)
Machine size
(M)
Capacity




Basic Equipment +
Chamfering Machine
1.5Kw
700kg
2.5*2.6*1.75
200,000-300,000 pcs/h
Selecting Machine
0.5Kw
450Kg
2.8*0.9*2
40000pcs/hour
Hot Stamp Machine
1.17Kw
250Kg
2.2*6.6*1.2
15000-20000pcs/hour
Bundling Machine
2.0Kw
410Kg
2.4*8.5*1.3
40000pcs/hour
Disposable wooden Knife, fork and spoon production line
Power
(KW)
Weight
(KG)
Machine size(M)
Capacity


Basic Equipment +
Hot press Machine
18Kw
3400Kg
6.5*4.5*1.9
15000-20,000pcs/hours

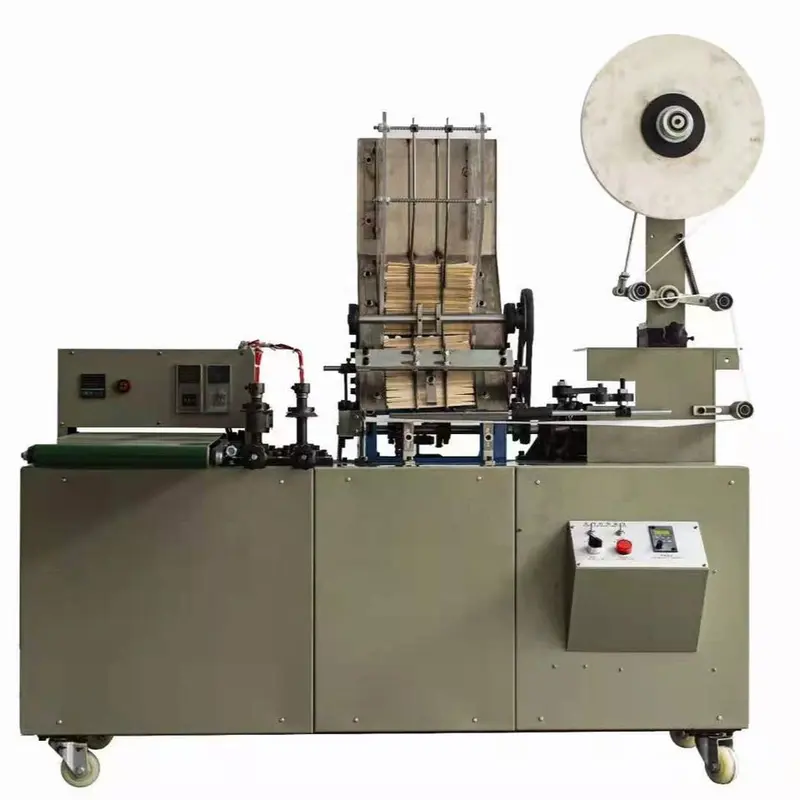

Packing machine
3.5kw
1600kg
8.2*1.3*1.8
20-150 bag/min
